MIRADRAIN - 2000 Series

These Drainage Composites are the industry standard for providing a channel for water migration, relieving hydrostatic pressure, and protecting the waterproofing system.

MiraDRAIN 2000
MiraDRAIN 2000
Drainage Composite
MiraDRAIN 2000 - 4' x 50' Roll
MiraDRAIN 2000 - 4' x 50' Roll
MiraDRAIN 2000 - 4' x 50' Roll
MiraDRAIN 2000 - 4' x 50' Roll
MiraDRAIN 2000 - 4' x 50' Roll

MiraDRAIN 2000 - 4' x 50' Roll

$428.53
View Details
MiraDRAIN 2000
MiraDRAIN 2000
Drainage board
MiraDRAIN 2000 - 2' x 50' - Qty 2 Rolls
MiraDRAIN 2000 - 2' x 50' - Qty 2 Rolls
MiraDRAIN 2000 - 2' x 50' - Qty 2 Rolls
MiraDRAIN 2000 - 2' x 50' - Qty 2 Rolls
MiraDRAIN 2000 - 2' x 50' - Qty 2 Rolls

MiraDRAIN 2000 - 2' x 50' - Qty 2 Rolls

$428.53
View Details

SHIPPING

✔ All items ship for free (standard ground, see map)

☏ Call: (800) 731-8420 for pricing and shipping questions.

Shipping estimates shown on the map pertain to this specific product only. Orders typically ship within 2 business days if the order is placed before 2PM Eastern Time. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.

Other Products Available:

FAQ

MIRADRAIN - DRAINAGE COMPOSITE

Why You Should Choose This Aggregate-Free Drainage Systems

Having good water drainage is very important for a complete waterproofing system, but is often overlooked. CCW has a large range of drainage solutions to meet just about any project’s requirements. CCW products will give you a channel for water movement, relieve hydrostatic pressure, and protect your waterproofing system. CCW products will replace much heavier standard drainage systems which will reduce the weight and cost for shipping.

The Improvements Made For A Good Drainage System

Drainage is an important part of the design and construction of below-grade applications. Without good drainage, groundwater can seep and cause hydrostatic pressure along with leakage which will cause structural damage. Good, effective drainage is essential. It can be costly and time-consuming installing standard aggregate drainage systems that force builders and designers to compromise on drainage. Compromising can easily lead to maintenance costs that far exceed the costs of installing an efficient drainage system.

The Evolution Of The Building Industry

In 1983, MiraDrain revolutionized the building industry by providing cost-efficient, high drainage capacity, and prefabricated drainage compounds. Each panel is made of a uniquely molded three-dimensional dimpled core formed from high-impact polystyrene. The high quality, crush-resistant core is laminated to filter fabrics or geotextiles, that will prevent soil particles from entering the drainage channels. The essentially bonded core and fabric systems will prevent backfill from pushing the fabric into the flow channels. Due to the unique design of CCW drainage flow capacities of the aggregate-free system are 3 to 5 times more effective than your standard aggregate systems.

Very High-Quality Performance

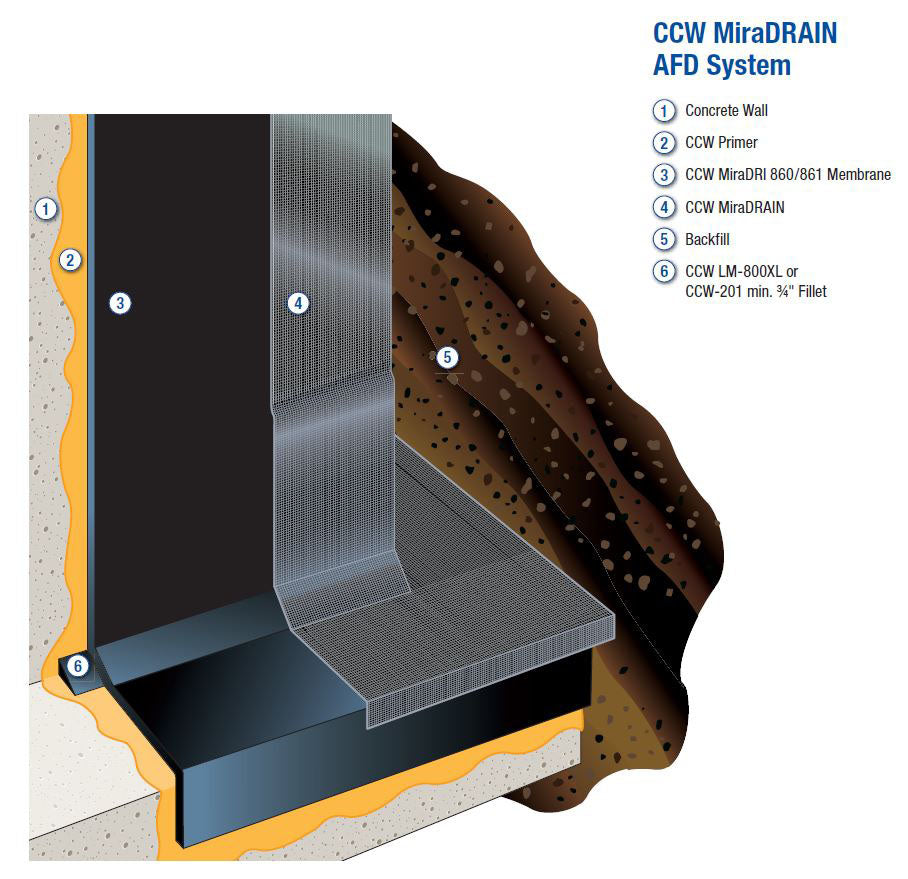

Since its first presence on the scene, one-half billion square feet of this drainage composites have been installed all around the world without any failures. CCW’s multi-directional flow design offers a continuous path for water drainage which eliminates the potential for hydrostatic pressure buildup. It allows water paths to freely pass into the drainage core where gravity brings it down to the foundation drainage system. The dimpled flow channels are covered with a filter fabric that faces the soil while the flat backside of the core fits directly against the wall surface. This provides maximum effectiveness with a wide range of waterproofing systems.

The Best Economic Choice

Outside of its superior performance, the CCW drainage board aggregate-free system makes economic common sense. Just one installer can carry a 200 sq. ft roll which is equivalent to a small dump truck for standard aggregate. This zero aggregate is labor-saving and faster installation which adds to the success of the CCW aggregate-free system. CCW is the leader in the market for innovative drainage solutions.

The Features And Benefits

High-flow drainage that is 3 to 5 times more effectiveness over aggregate or sand.
Offers no-clogging filer fabrics.
Reduces hydrostatic pressure buildup against below-grade structures.
High-quality strength core which can withstand installation and natural earth stresses.
Improves waterproofing systems by channeling water away.
It provides a protection course for the waterproofing system.
Remains consistent and proven long-term performance.
A lightweight product that allows for cost-efficient installation.
Allows for backfilling with the excavated soil.

About CCW 2000

CCW 2000 is a medium flow drainage compound made of long-lasting nonwoven filter fabric that bonds to the individual dimples of the molded polypropylene core to reduce fabric from getting into the flow channels because of backfill pressure. The filter fabrics also prevent soil particles from passing into the core but allow water to pass through easily. This product is designed to use in vertical single-sided drainage operations. Its standard flow rate and compressive strength make it ideal for use in shallow depths that do not exceed 10-feet where high-flow and high compressive strength requirements do not exist.

It serves as a protection course over CCW waterproofing membranes. The flat side fits flat against wall surfaces, making this product perfect for foundation walls, retaining walls, bridge abutments, and other similar structures.

About CCW 6000/6200

The 6000 is a very strong drainage component made of nonwoven fabric that bonds to the individual dimples of the molded polypropylene core to reduce the presence of fabric getting into the flow channels caused by backfill pressure. The filter fabric also prevents soil particles from entering into the core but allows the free passage of water.

This product is designed to use in high-flow, compression strength, vertical drainage operations where single-sided subsurface drainage is required. It also serves as a protection course over CCW waterproofing membranes.

The flat side of the 600 fits snugly against wall surfaces, making this product perfect for foundation walls, retaining walls, bridge abutments, and other similar structures.

Drainage Composite Information

About CCW 6000XL, 6200Xl

The 6200XL is a very strong drainage composite that is made of long-lasting nonwoven filter fabric that bonds to the individual dimples of a molded polypropylene core to reduce the chances of fabric getting into the flow channels due to backfill pressure. The filter fabric prevents soil particles from passing into the core while allowing subgrade moisture to freely pass.

It’s designed to use in high-flow, high-compression strength, vertical drainage applications where single-sided subsurface drainage is required.

The 6200XL serves as a protection course over CCW waterproofing membranes on projects where additional protection is required. The flat side of this product fits snugly against wall surfaces which makes this product perfect for foundation walls, retaining walls, bridge abutments, and other similar structures.

About CCW 8000

This product uses a high-impact PVC core and is highly recommended for applications where chemical run-off is present such as airports, helicopter pads, and industrial sites. The 8000 is very resistant to petrochemicals and good for subgrade drainage around storage tanks. It is available with standard woven geotextile fabric or nonwoven geotextile fabrics.

About CCW 9000

You will be given a great performance, superior strength drainage that has a three-dimensional, high-impact polypropylene core and woven filter fabric. The filter fabric bonds to the individual dimples of the molded polypropylene cord to reduce fabric from getting into the flow channels caused by overburden pressure. The fabric serves as a medium fabric to stop the passage of particles from entering the core while still allowing surface moisture to freely pass.

CCW 9000 offers a woven monofilament fabric that will withstand high abrasion from applied overburden. It prevents the intrusion into the drainage core due to low elongation attributes. The woven fabric is best for receiving directly poured concrete topping than a nonwoven geotextile fabric.

CCW 9000 is perfect as a protection course when used in conjunction with CCW Waterproofing membranes.

About CCW 9800

CCW 9800 is a high-strength drainage compound made of heavy-weight nonwoven filter fabric that bonds to the individual dimples of a molded polystyrene core to reduce fabric from entering into the flow channels caused by backfill pressure. This fabric offers unmatched filtration to prevent small particles of soil from clogging up the drainage channel bur still allows subgrade moisture to freely pass through.

The 9800 is designed specifically for use in high-flow, high-compression strength, horizontal, and vertical drainage applications. It’s used where maximum filtration is required for subsurface drainage and serves as a protection course over CCW waterproofing membranes.

The flat side of the 9800 fits snugly against wall or deck surfaces, making it the perfect product for large planters, green roofs, and foundation wall applications.

About CCW 9900

This is a high-strength drainage product made of woven filter fabric that bonds to the individual dimples of the molded polypropylene core to reduce fabric getting into the flow channels due to overburden pressure. The fabric serves as a filter preventing the passage of particles getting into the core while still allowing surface moisture to freely pass.

The product offers woven monofilament fabric that will withstand excessive abrasion from applied overburden and prevents entrance into the drainage core due to its low elongation attributes. The woven fabric is perfect for receiving directly poured concrete topping vs nonwoven geotextile fabrics.

It’s designed for use in horizontal plaza roof decks and between-slab drainage applications where single-sided subsurface drainage is required.

The 9900 can also be used in traffic areas for vehicles because of its high compression strength and will serve as a protection course when used along with CCW waterproofing membranes.

About CCW GR9400

This product is designed specifically for green roofs and large planter applications. When used with CCW waterproofing, this drainage compound offers adequate water retention for sedums or stonecrops, grasses, and plant life while offering a channel for large levels of water to drain.

About CCW HC

This is a high-flow drainage product that includes a 1-inch, three-dimensional, high-impact polypropylene core that is wrapped in a nonwoven filter fabric. The filter fabric bonds with the individual dimples of the molded polystyrene cord to reduce fabric from entering the flow channels caused by backfill pressure. The fabric serves as a filter medium to prevent particles from passing into the core while still allowing excess water to freely pass into the drainage system.

The product is designed for use in place of standard aggregate-filled french drains or trench drains. It is primary use is for roads and highways as an edge drain. It is also used for athletic fields, golf courses, playgrounds, airports, and foundation drains.
